THERMOFORMING MACHINE

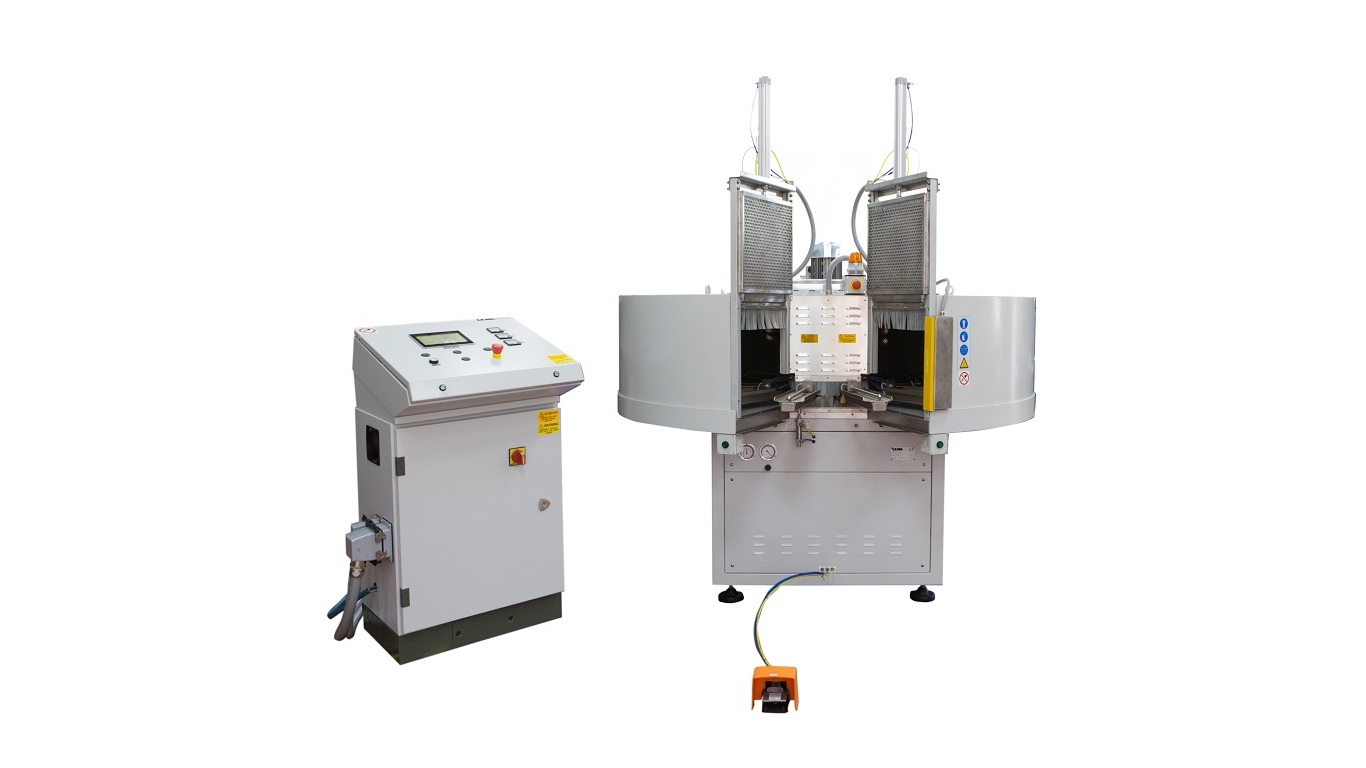

Automatic thermoforming machine for polycarbonate masks - CVP50

TECHNICAL DATA

Power supply: 220/380V three-phase
Electric power: 12 kW
Machine dimensions: 220x220x215 cm
Control board dimensions: 47 (L) x 39 (W) x 96 (H) cm
Weight: 900 kg

DESCRIPTION

CVP50 is a machine for bending polycarbonate helmet visors.

  • It is equipped with a wheel having 16 mold positions.
  • The unit is supplied without bending molds.
  • Heating chamber max temperature 170°C.
  • Temperature and cycle time are controlled by PLC.
  • Equipped with operator panel that displays all working information.
  • Vacuum pump with spare tank included.
  • It requires compressed air connection.
